100kVA Silent Industrial Diesel Generator
100kVA Silent Industrial Diesel Generator
Regular price
R 248,400.00 ZAR
Regular price
Sale price
R 248,400.00 ZAR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Supplier Stock Item – Dispatch ETA 1–3 Business Days
This item is sourced from our supplier network. Dispatch time may vary depending on supplier stock availability.
✔ Supplied through authorized South African distributors

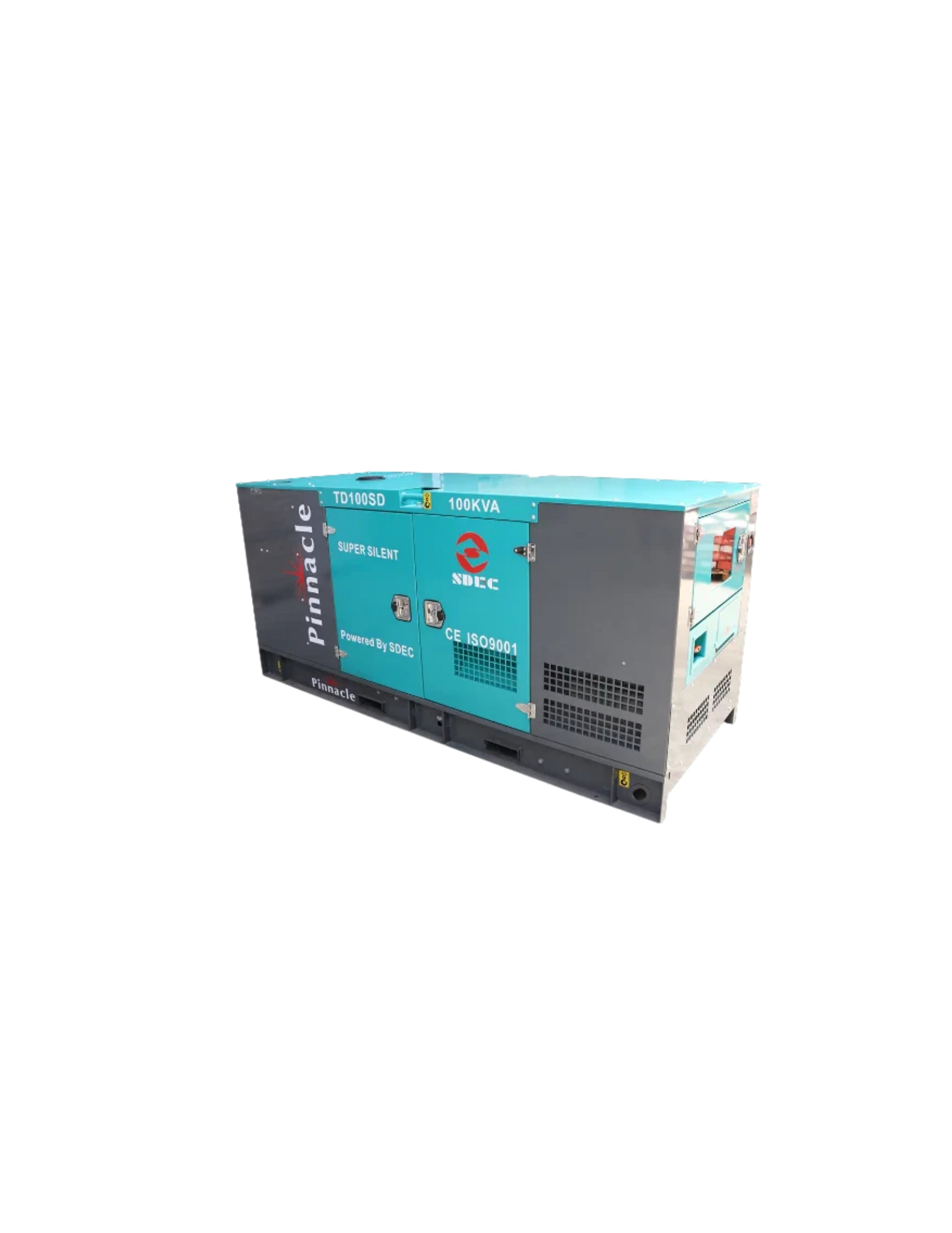

Our silent canopy generator is designed for industrial use and operates at a low noise level of 75dB. It provides robust power of 100kVA prime power and 110kVA standby power, ensuring uninterrupted operation even during power outages. Powered by a diesel engine, it offers fuel efficiency and long-lasting performance.
| Model: TD100SD | ||
| Prime power | kVA | 100 |
| Standby power | kVA | 110 |
| Rated voltage line to line | V | 400/230 |
| Rated current | A | 152 |
| Maximum sound level | dB(@7m) | 96 |
| Engine- SDEC | ||
| Model | 4HTAA4.3-G21 | |
| Aspiration | Turbocharged, aftercooler | |
| Fuel system | Longkou in-line “P” type | |
| No. cylinders | 4 in line | |
| Displacement | L | 4.3 |
| Bore*Stroke | mm | 105*124 |
| Compression ratio | 16:1 | |
| Rated speed | r/min | 1500 |
| Rated net power(with fan) | Kw | 95 |
| Governor type | Electronic | |
| Start Motor | V | 24 |
| Exhaust System | ||
| Exhaust gas flow | m3/min | 16.1 |
| Exhaust gas temperature | ℃ | 600 |
| Max. pressure | kPa | 8 |
| Aspiration System | ||
| Max inlet pressure | kPa | 6 |
| Combustion volume | m³/min | / |
| Air flow | m3/min | 6.8 |
| Fuel System | ||
| 100% load(Prime power) | L/h | 23 |
| 75% load(Prime power) | L/h | 17.1 |
| 50% load(Prime power) | L/h | 11.8 |
| Fuel tank capacity | L | 185 |
| Lubrication System | ||
| Oil capacity | L | 13 |
| Lub. Method | Fully forced pressure feed | |
| Oil pump | Gear type driven by camshaft | |
| Cooling System | ||
| Water capacity(engine only) | L | 6.8 |
| Thermostat operation range | ℃ | 82-95 |
| Max water temperature | ℃ | 104 |
| Alternator | ||
| Model | Technic | TP274C |
| Phase | 3 | |
| Voltage | V | 400/230 |
| Wiring Type | 3 Phase 4 wire, Y type | |
| Bearing | 1 | |
| Power factor | 0.8 | |
| Frequency | Hz | 50 |
| Prime power | kW | 80 |
| Exciter Type | Brushless, self-excitation | |
| Voltage regulation | % | ±0.5 |
| Protection Grade | IP 23 | |
| Insulation grade | H/H | |
| Altitude | m | ≤1000 |
| Controller | ||
| Model | Deepsea | DSE6120 |
| Protective functions: | ||
| ˃ Low oil pressure | ||
| ˃ High water temperature | ||
| ˃ High/low voltage | ||
| ˃ High Engine Temperature and Overspeed. | ||
| ˃ Voltage regulator frequency regulator | ||
| ˃ Emergency stop | ||
| ˃ Start failure | ||
