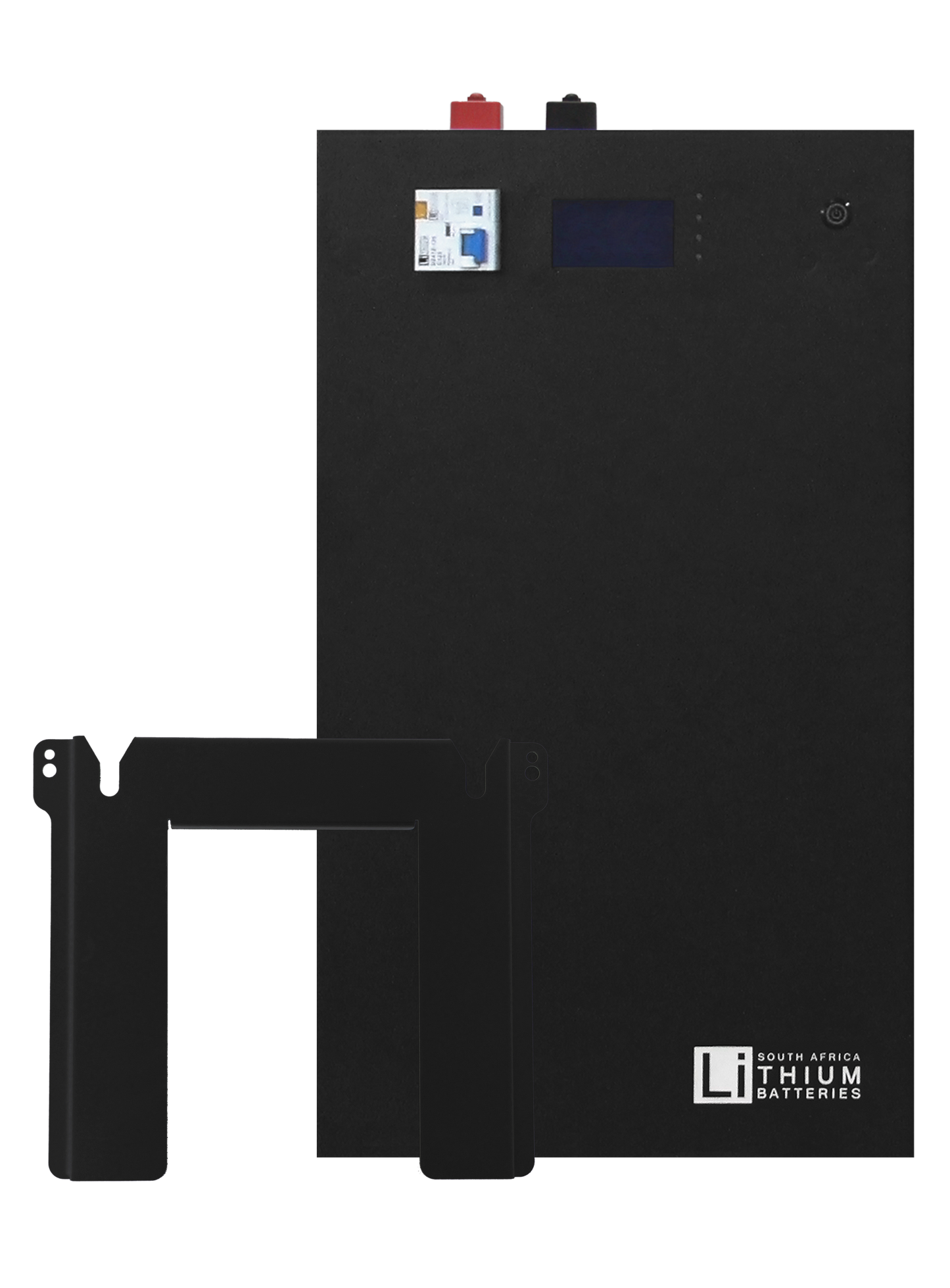

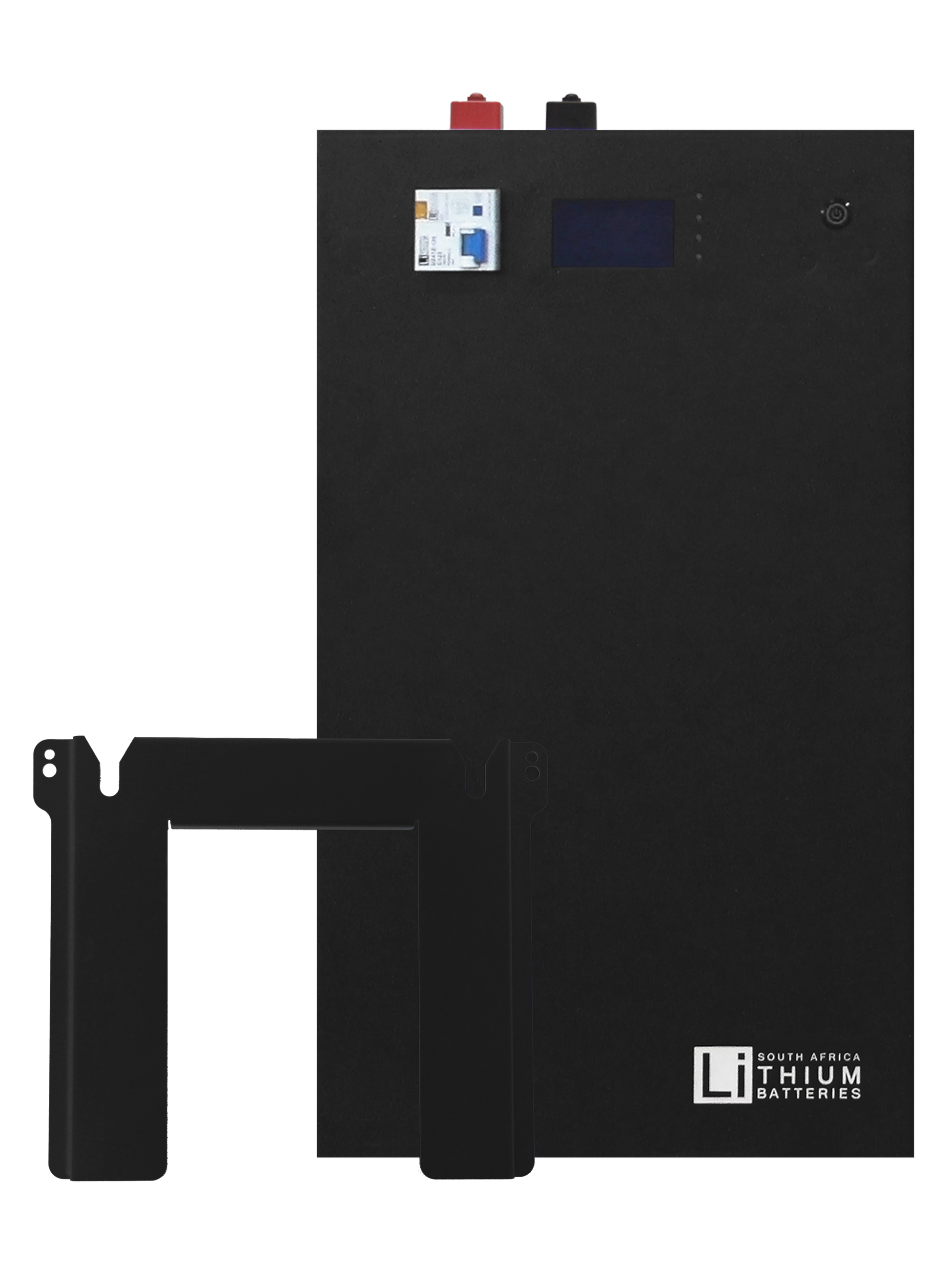

LBSA NEW LOOK 25.6v 208Ah 5.3kWh LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery

Supplier Stock Item – Dispatch ETA 1–3 Business Days

This item is sourced from our supplier network. Dispatch time may vary depending on supplier stock availability.

✔ Supplied through authorized South African distributors

COMPATIBLE WITH ALL PREVIOUS LBSA SMART BATTERIES

• 5.3KW Max Continuous Load
• Cycle life
• 10 Year or 4500 cycles (9000 Cycles on BMS display) Warranty
• Applicable for all batteries purchased after 2022/11/21

Details:

• CAN Bus Comms: Victron, Growatt
• Bulk + Absorption: 28v
• Float : 28v
• Low Voltage Cut Off: 22v
• Maximum continuous Charge/Discharge For Single Unit: 100A
• Charge for Parallel units: (100A*"Units In parallel") / 2
• Discharge for Parallel units: 100A * "Units in parallel

Display Definitions:

• OV - Warn: high pressure alarm
• OV - Prot: over-voltage protection
• UV - Warn: low pressure alarm
• UV - Prot: under-voltage protection
• OT-Warn：High temperature alarm
• OT-Prot：Over temperature protection
• UT - Warn: low temperature alarm
• UT - Prot: low temperature
• OC - Warn: over-current alarm
• OC - Prot: over-current protection
• CAPA - Warn: remaining capacity of the alarm
• OFF - USE: failure alarm
• SCP：Short circuit protection
