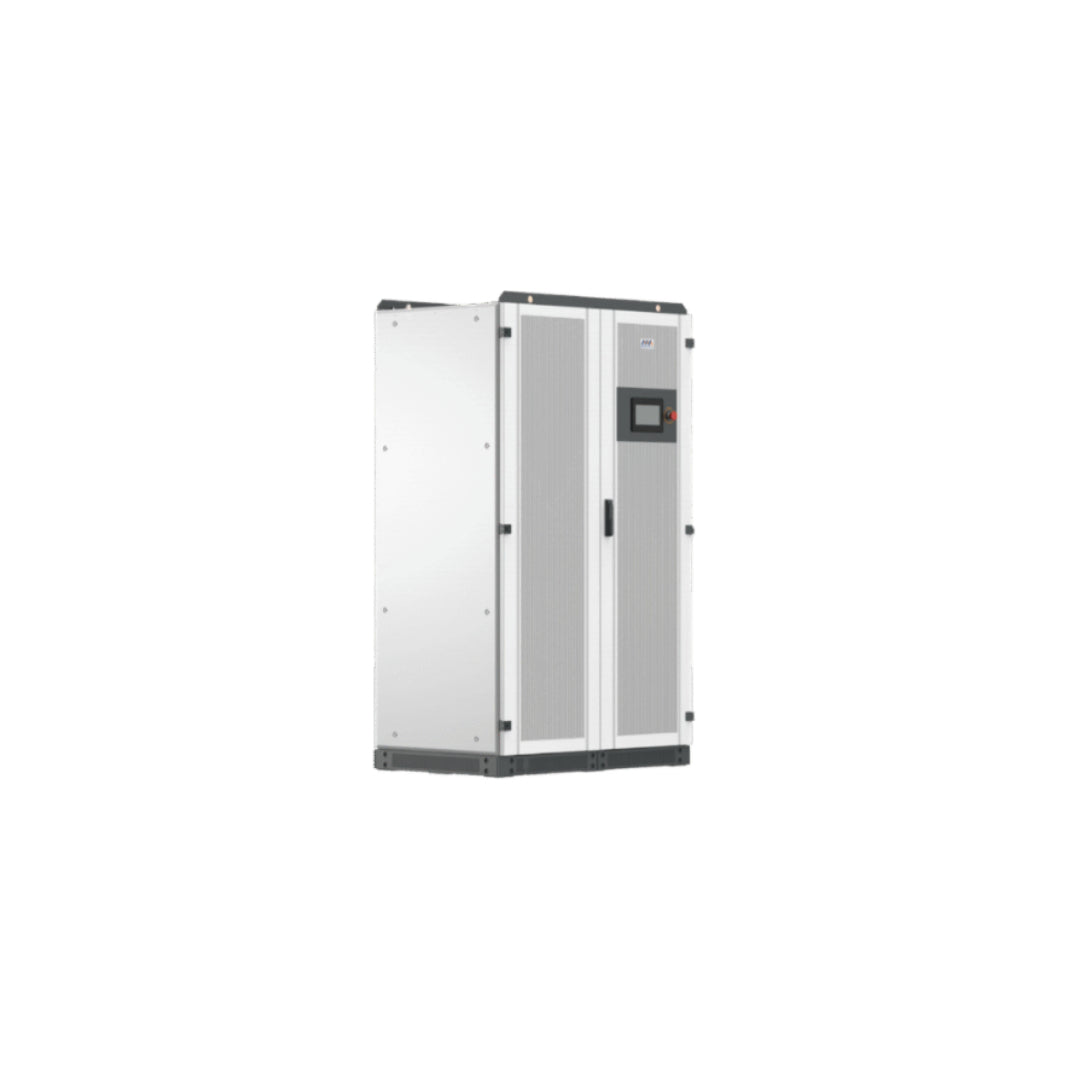

MEGAREVO 150KW HYBRID INVERTER
MEGAREVO 150KW HYBRID INVERTER
Couldn't load pickup availability
Supplier Stock Item – Dispatch ETA 1–3 Business Days
This item is sourced from our supplier network. Dispatch time may vary depending on supplier stock availability.
✔ Supplied through authorized South African distributors
MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, which greatly improves customer deployment efficiency and reduces installation costs. PV capacity can be flexibly configured, which greatly improves system availability and is suitable for the remote areas and islands where power is relatively weak.
Key Features:
- Rated Power of 150 kW
- Rated current of 216A
- Built-in isolation transformer for high load adaptability
- Perfect protection function for inverter and battery
- Redundancy design for important functions
- Integrated design, easy to integrate
- Support simultaneous access of load, battery, power grid, diesel, and PV
- Built-in maintenance bypass switch, improve system availability
- Support battery capacity and discharge time prediction
- Smooth switching between on and off grid, uninterrupted supply of load
- Operate with EMS to monitor system status in real time
- Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly
- Supports unattended operation, with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management
- Passed EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC61727, IEC62116, IEC 61683 test certification
Key Benefits:
- Save more installation, commissioning costs
- Reduce the use of fossil fuels and be more environmentally friendly
- Increase the penetration of renewable energy
- Continuous and stable power supply
- PV expansion will be more convenient in the future
| Model | MPS0150 |
| AC(on-grid) | |
| Max. output power (kW) | 165 |
| Rated output power (kW) | 150 |
| Rated voltage (V) | 400 |
| Voltage range (V) | 320~460 |
| Rated current (A) | 216 |
| Rated frequency (Hz) | 50/60 |
| Frequency range (Hz) | 45~55 / 55~65 |
| THDi | <3% |
| Power factor | 1leading-1lagging(settable) |
| Grid type | 3W+N+PE |
| AC(off-grid) | |
| Max. output power (kW) | 165 |
| Rated power (kW) | 150 |
| Rated voltage (V) | 400 |
| Rated current (A) | 216 |
| THDu | ≤1% linear; or≤5% nonlinear |
| Rated frequency (Hz) | 50/60 |
| Overload capacity | 110% long-term, 120% 1min |
| PV input | |
| Max. PV input voltage (V) | 1,000 |
| Max. PV power (kW) | 120/180/240 |
| MPPT module quantity | 2/3/4 |
| MPPT voltage range (V) | 250~850 |
| Battery | |
| Battery voltage range (V) | 420~850 |
| Max. charging power (kW) | 120/180/240 |
| General data | |
| Dimension W*D*H (mm) | 1,200*800*2,050 |
| Weight (kg) | 1,250/1,280/1,310 |
| Operation temperature (℃) | -30 ~ 55 |
| Relative humidity | 0 ~95% non-condensing |
| Ingress protection | IP20 |
| Noise emission (dB) | <70 |
| Operating altitude (m) | <5,000 (>3,000 Derating) |
| Cooling | Air Cooling |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485, CAN |
| EMS communication | RS485, TCP/IP |
| Certificates | EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683
NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 |
