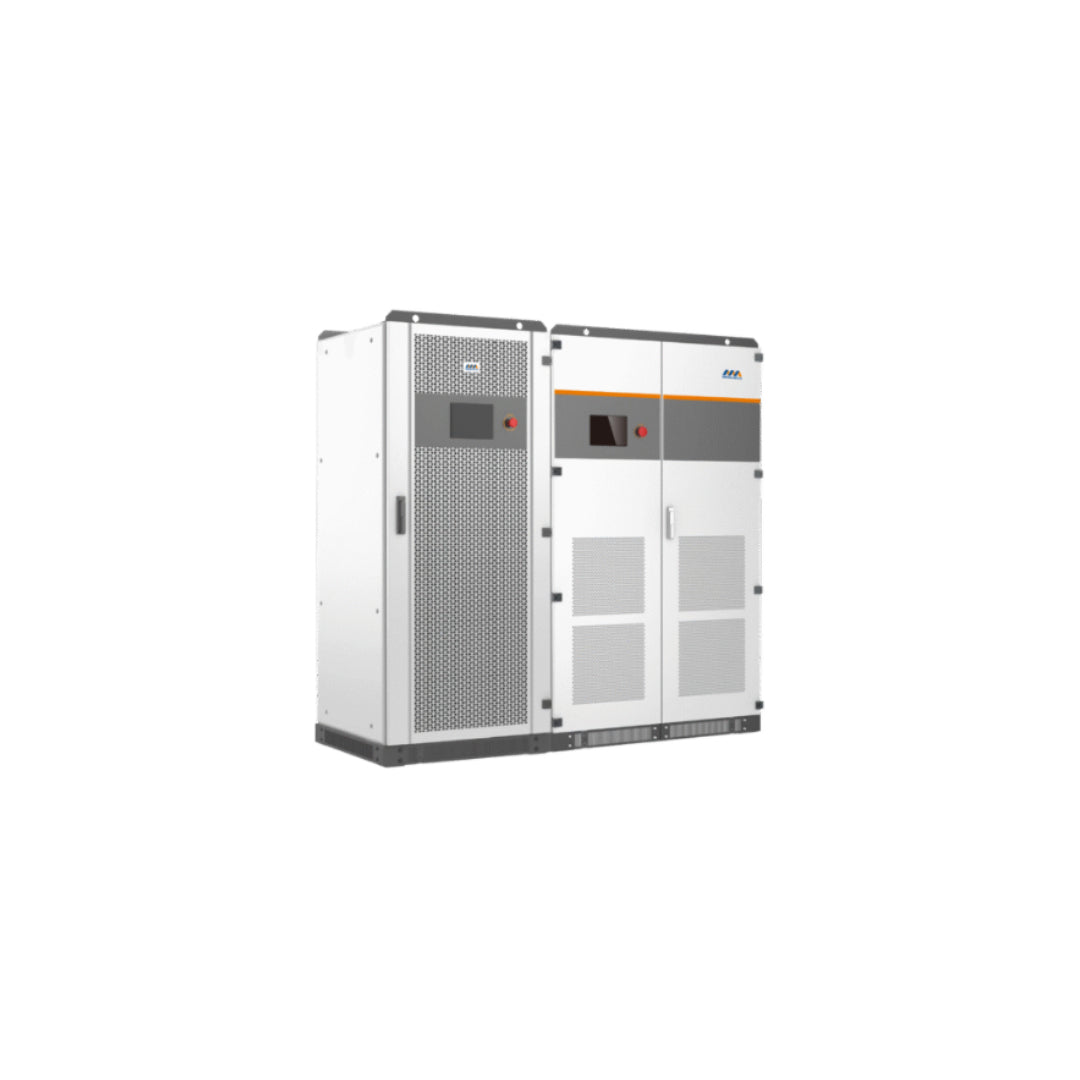

MEGAREVO 250KW HYBRID INVERTER

Supplier Stock Item – Dispatch ETA 1–3 Business Days

This item is sourced from our supplier network. Dispatch time may vary depending on supplier stock availability.

✔ Supplied through authorized South African distributors

The Megarevo 250kW Hybrid Inverter is a high-capacity, integrated energy storage inverter designed for commercial and industrial microgrid applications. By combining PV controllers, storage converters, and automatic on/off-grid switching into one unit, it simplifies deployment, reduces costs, and increases system reliability.

Capable of supporting PV, diesel generators, grid, and batteries simultaneously, it ensures continuous and stable power even in remote areas and islands. With advanced EMS integration, redundancy protection, and international certifications, the MPS series is the ultimate choice for large-scale renewable energy systems.

Megarevo 250kW Hybrid Inverter

Key Features

• Rated Power: 250kW, with 361A rated current

• Integrated Design: Combines PV controller, storage converter, and on/off-grid switching unit

• Versatile Inputs: Supports PV, diesel generator, grid, load, and battery simultaneously

• Seamless Switching: Smooth transition between on-grid and off-grid without power interruption

• Built-in Isolation Transformer: Ensures high load adaptability

• Redundancy Design: Protects critical functions and increases system reliability

• Maintenance Bypass Switch: Improves availability during service

• Smart EMS Monitoring: Real-time system management, cloud-based EMS, and remote access

• Unattended Operation: LCD HMI interface with predictive battery capacity and discharge management

• Certified for Global Standards: EN, IEC, NRS, VDE, CEI, AS/NZS, and more

Technical Specifications

AC (On-Grid):

• Max Output Power: 275kW

• Rated Output Power: 250kW

• Rated Voltage: 400V (3-phase)

• Voltage Range: 320–460V

• Rated Current: 361A

• Frequency: 50/60Hz

• THDi: <3%

• Grid Type: 3W+N+PE

AC (Off-Grid):

• Max Output Power: 275kW

• Rated Power: 250kW

• Rated Voltage: 400V

• Rated Current: 361A

• Frequency: 50/60Hz

• Overload: 110% long-term, 120% (1min)

• THDu: ≤1% (linear) / ≤5% (nonlinear)

PV Input:

• Max PV Voltage: 1,000V

• Max PV Power: 300/360kW

• MPPT Quantity: 5/6

• MPPT Voltage Range: 250–850V

Megarevo 250kW Hybrid Inverter Battery:

• Voltage Range: 420–850V

• Max Charging Power: 300/360kW

General:

• Dimensions (mm): (600×720×2050)×1 + (1200×800×2050)

• Weight: 1,980/2,010kg

• Operating Temperature: -30°C to +55°C

• Humidity: 0–95% non-condensing

• Altitude: <5000m (derating above 3000m)

• Cooling: Air cooling

• Noise: <70dB

• Ingress Protection: IP20

Communication & Display:

• Display: LCD touch-screen

• BMS: RS485, CAN

• EMS: RS485, TCP/IP
