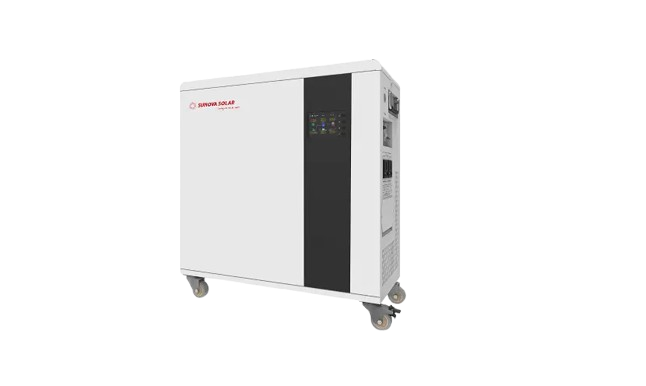

SUNOVA EFOX WP SERIES ALL IN ONE PORTABLE OFF GRID ENERGY STORAGE (3.5KW INVERTER + 5KWH BATTERY)

EXPECTED TO BE IN STOCK AT EXTERNAL SUPPLIER

 ETA 1 - 3 BUSINESS DAYS (DEPENDABLE ON STOCK AVAILABILITY)

Built-in LFP Battery

• Type: Li-ion (LFP)

• Rated Voltage: 51.2V

• Voltage Range: 44.8V ~ 57.6V

• Maximum Discharge Rate: 1C

• Maximum Charge Rate: 1C

• Battery Capacity: 5.12kWh

High-Performance Inverter

• Rated Power: 3000W

• Surge Power: 6000W (5 seconds)

• Output Voltage: 220/230/240V

• Frequency: 50/60Hz

• Total Harmonic Distortion (THDv): <3%

• Output Waveform: Pure Sine Wave

• Output Type: AC Socket × 2 + Terminals

PV and AC Input Specifications

AC Input

• Voltage Range: 170 ~ 280V

• Frequency: 50/60Hz

• AC Charge Current: 15A (adjustable between 10A and 15A)

PV Input

• Maximum PV Power (Recommended): 4500W

• Maximum PV Voltage: 145V

• MPPT Voltage Range: 60 ~ 115V

• Maximum PV Charge Current: 30A

General Specifications

Environmental Tolerance

• Operating Temperature: -15°C to 60°C

• Storage Temperature: 0°C to 50°C

• Humidity: 5% ~ 95%

• Cooling Strategy: Fan Cooling

• Enclosure Protection Rating: IP20

Physical Specifications

• Weight: 64.6 kg

• Dimensions: 585mm × 611mm × 230mm

Communication and Certification

• Communication Protocol: WiFi / RS485

• Certifications: CE, UN38.3, TUV mark
