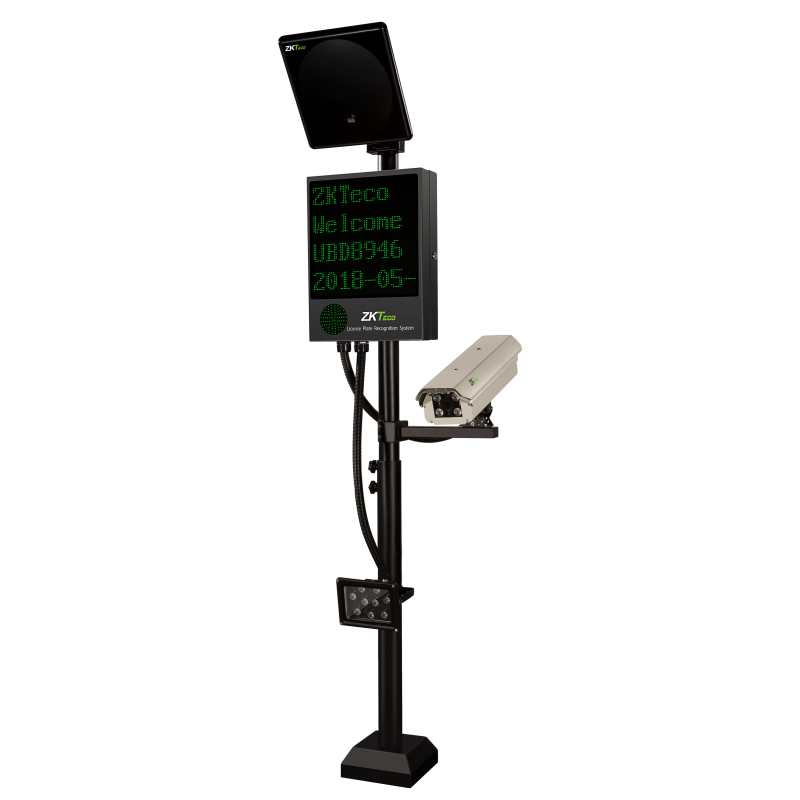

ZKTeco LPRS2000 Hybrid Vehicle Recognition

Capture Rate

100% (For fixed vehicle)

Recognition Time

≤200ms (Average)

Recognition Distance

2-10meters (Recommend distance is 3.5-4m)

Adaptable Speed of Car

≤15 km/h

Output Information

 Access time,  Card number,  License plate picture, License plate number

Supported Countries

Argentina, Brazil, Chile, Colombia, Egypt, EU, Indonesia, Korea, Malaysia, Mexico, Mongolia, Oman, Pakistan.etc, Peru, Saudi Arabia, South Africa, Thailand, Turkey, UAE, Vietnam

Packaging Size

1140mm*500mm*310mm

CPU

32 KBI-cache/ 32 KBD-cache, A7@600 MHz

Flash

NOR FLASH 32M

RAM

 256M, DDR3

Image Sensor

1/2.8” CMOS

Lens

2MP, 3.2-11.1mm, Auto focus

Resolution

1920×1080P

Min. Illumination

0.1Lux (Standard)

Video Compression Standard

H264

Video Compression Bit-rate

32Kbps-16Mbps

Double Code Stream

Main Stream

Substream

 320*240 (Опція), 1-25 frames/s (25 default), 640*480, 704*576

Communication

TCP/IP (10/100Mbps)

I/O Interface

 Audio in/out,  Barrier status input,  Two RS485 outputs,  Wiegand in & out, Two relay

Storage

 Max support 32G), TF Card (Default 8G

Reset

Reset device parameters

Working Modes

Тригер відео

Protection Level

IP65

Working Voltage

DC 12V

Working Temperature

-20°C - +55°C

Dimension

580*242*220mm

Handheld Card Distance

Up to 18m

Vehicle Reading Distance

До 12m

Working Frequency

902-928MHz

Chip

Impinj R2000
